EPC9058: 2A, 0 ~ 52V, 15MHz, Class E Amplifier

Summary

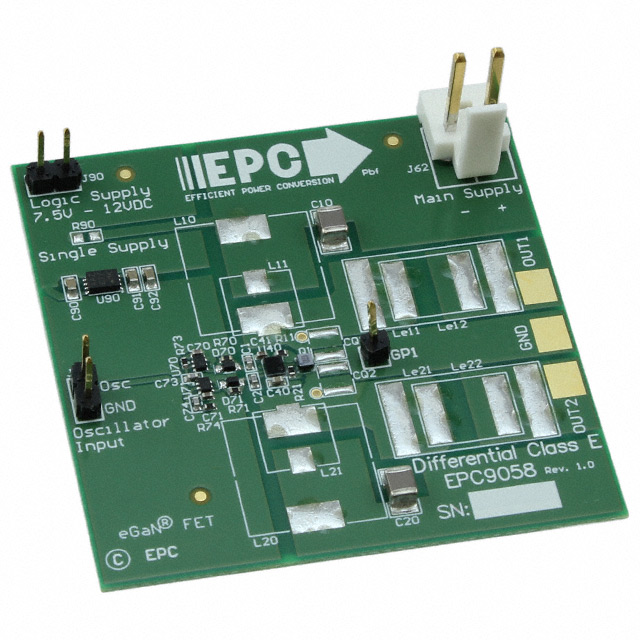

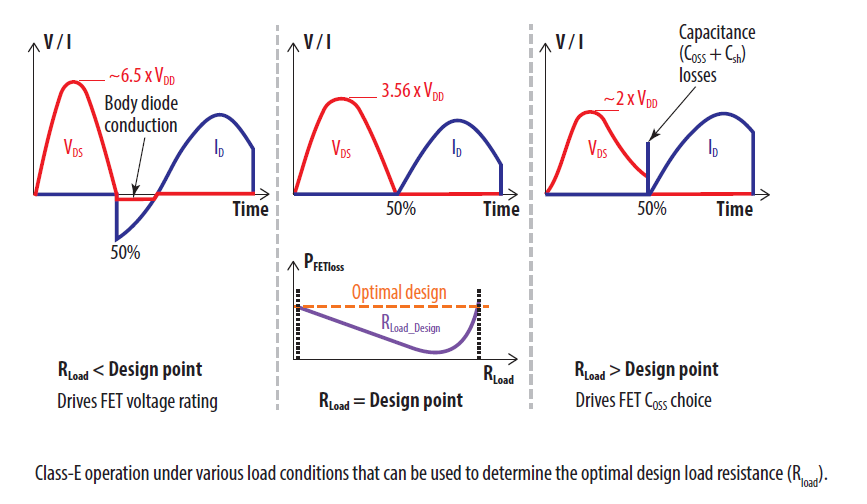

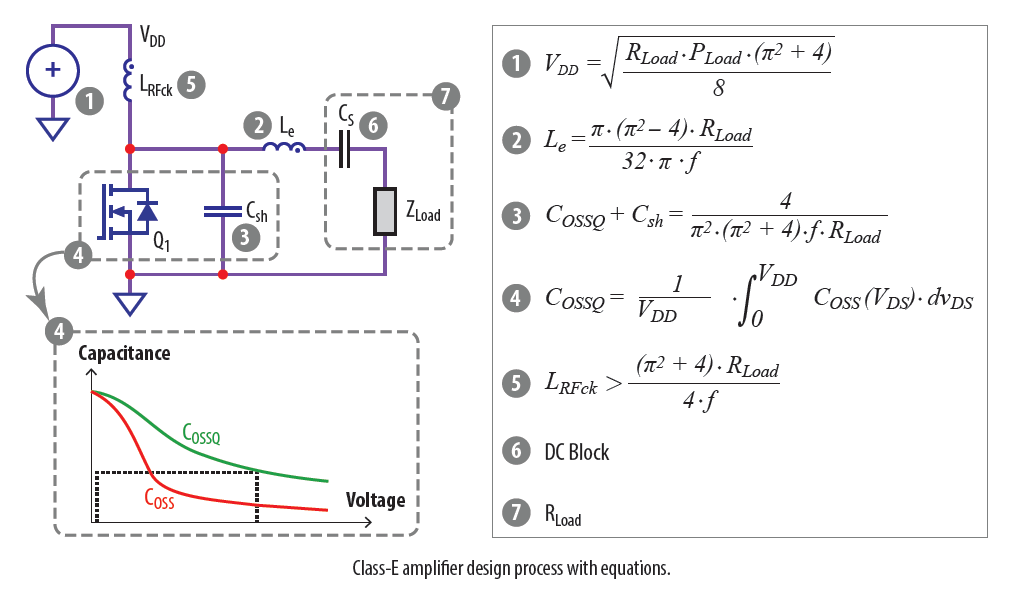

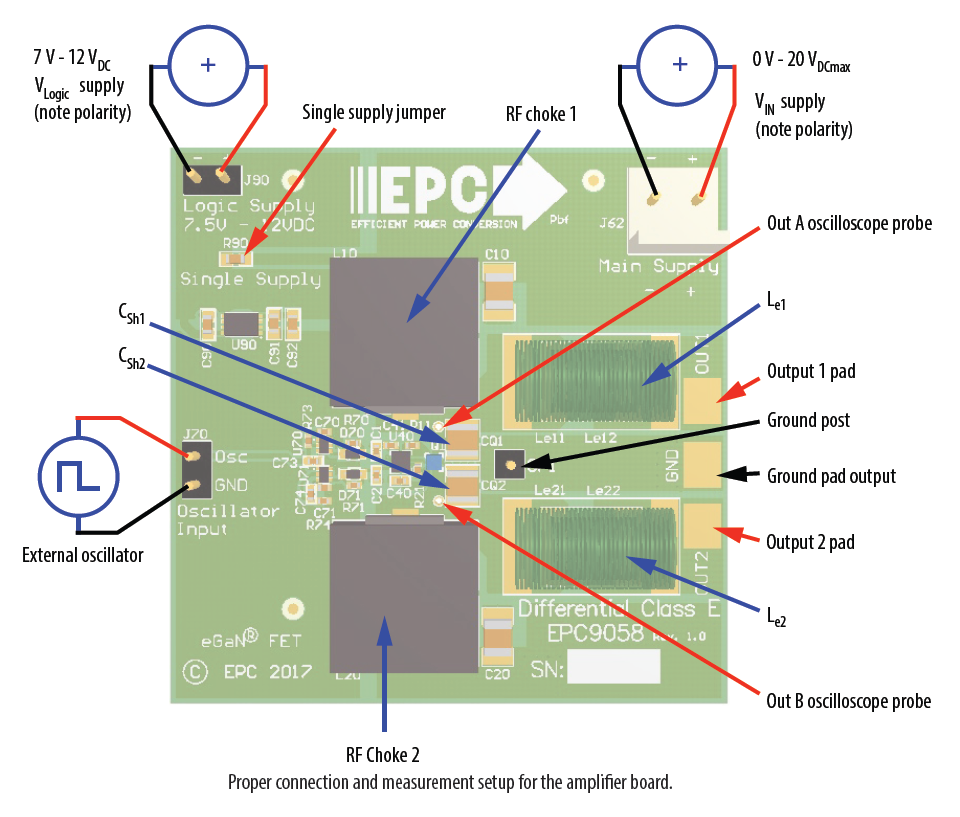

The EPC9058 is a high efficiency, differential mode Class-E amplifier development board that can operate up to 15 MHz, including 6.78 MHz which is popular for wireless power. However, this board is not preconfigured for any particular frequency. The purpose of this development board is to simplify the evaluation process of class-E amplifier technology using eGaN FETs by allowing engineers to easily mount all the critical class-E components on a single board that can be easily connected into an existing system.

This board may also be used for applications where a low side switch is utilized. Examples include, and are not limited to, push-pull converters, current-mode Class D amplifiers, common source bi-directional switch, and generic high voltage narrow pulse width applications such as LiDAR.

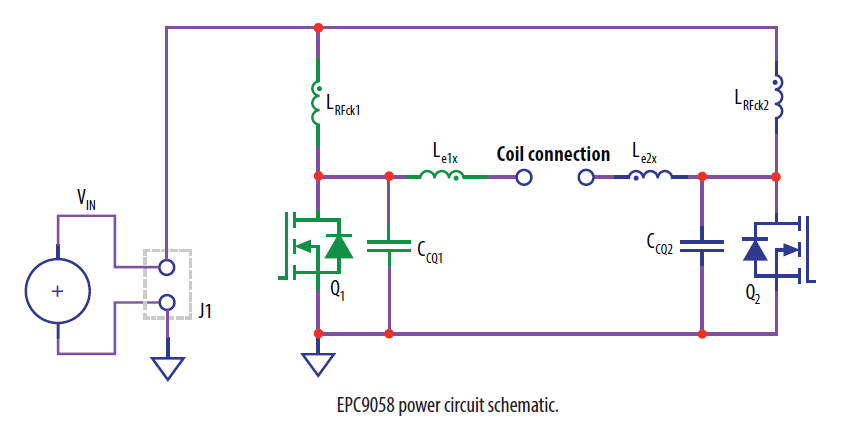

The amplifier board features the 120 V rated EPC2110 eGaN FET. The amplifier is set to operate in differential mode and can be re-configured to operate in single-ended mode and includes the gate driver and logic supply regulator.

For more information on the EPC2110 eGaN FETs please refer to the datasheet which should be read in conjunction with this quick start guide. GaN

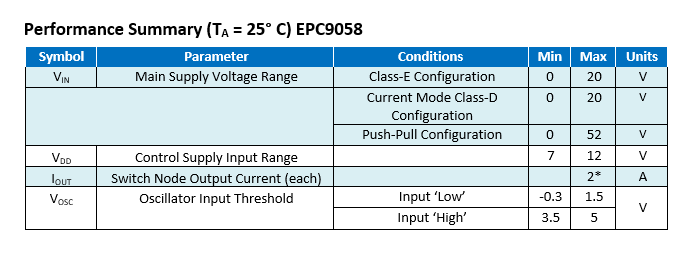

Specifications

Manufacturer	EPC
Category	Power Management
Sub-Category	Power Output Stages (H-Bridge, Half Bridge)
Eval Board Part Number	917-1170-ND
Eval Board Supplier	EPC
Eval Board	Board not Stocked
Configuration	Class E amplifier
Voltage Out Range	0 ~ 52 V
Current Out	2 A
Interface	Parallel Logic
Features	Internal Bootstrap Circuit Shoot Through Protection
Switching Frequency (Max)	15 MHz
Component Count + Extras	31 + 10
Design Author	EPC
Main I.C. Base Part	EPC2110
Date Created By Author	2017-11
Date Added To Library	2018-09
