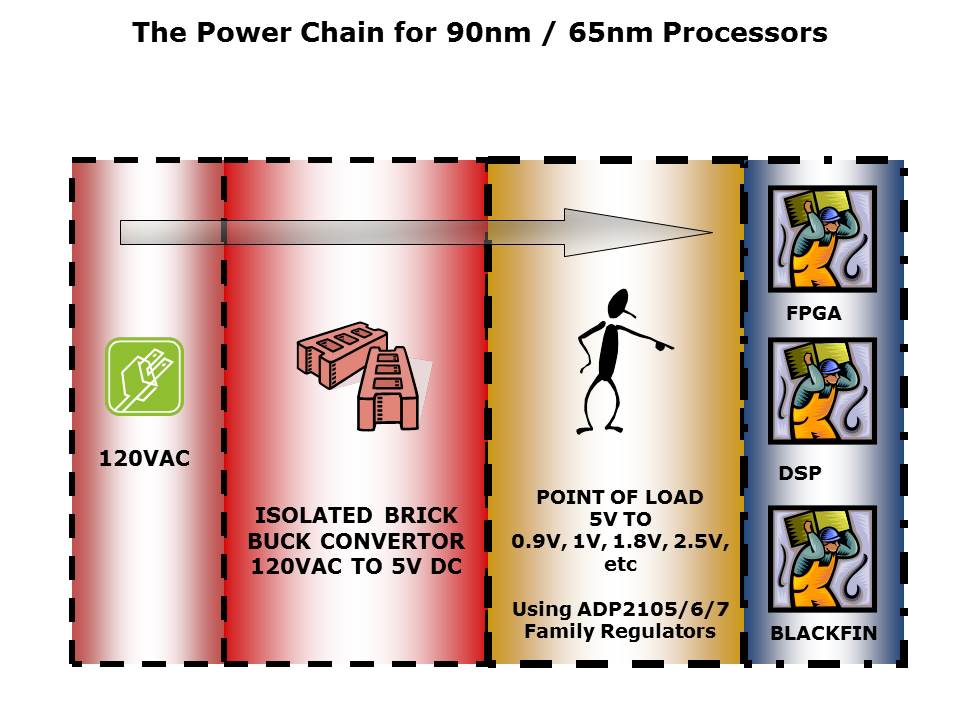

The power chain shown here is a flow chart describing the energy flow within a system. For consumer goods, one can easily envision a simple flow from the 120V (AC) source, going through an isolated brick converter for safety and then finally being converted to a low safe usable voltage for point of load devices such as FPGA, DSP, and/or Blackfin™ Processors.
PTM Published on: 2008-01-22
