Bourns Inc.

Shielded Power Bead Inductors – SPB Series

Bourns' power bead inductors feature high current and low DC resistance for multi-phase regulators in communications systems

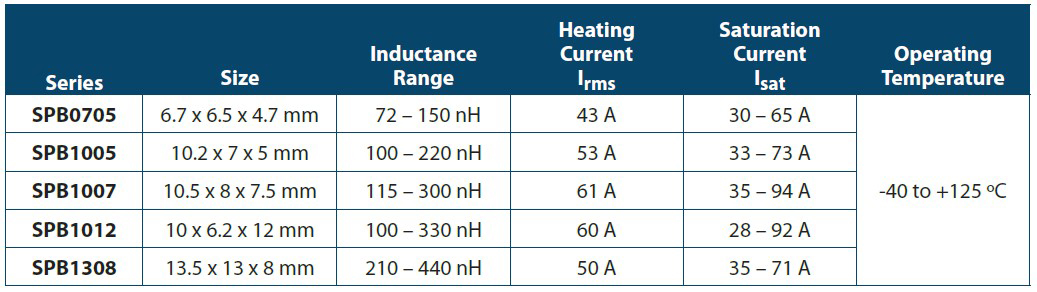

Image of Bourns Shielded Power Bead Inductors – SPB SeriesBourns Magnetics' SPB0705, SPB1005, SPB1007, SPB1012, and SPB1308 series power bead inductors feature a high-rated current, low DC resistance, and shielded construction for low magnetic field radiation. The high-rated current, low loss, and multiple footprint features of these inductors make them well-suited for multi-phase regulators, power processors, memory modules, servers, storage, data centers, networking systems, and graphic cards.

Resources
Features
  • Shielded construction
  • High-rated current
  • Low DCR/ACR
  • Temperature range: -40°C to +125°C
Applications
  • Voltage regulator modules (VRMs)
  • CPU/GPU/FPGA power
  • High-current ASICs
  • High-current multi-phase regulators
  • Power processors and memory modules
  • Servers, storage, and data centers
  • Networking systems and graphic cards

SPB0705 Series Inductors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FIXED IND 72NH 43A 0.35 MOHM SMDSPB0705-72NMFIXED IND 72NH 43A 0.35 MOHM SMD32 - Immediate$4.04View Details
FIXED IND 105NH 43A 0.35 MOHMSPB0705-R10MFIXED IND 105NH 43A 0.35 MOHM368 - Immediate$4.04View Details
FIXED IND 120NH 43A 0.35 MOHMSPB0705-R12MFIXED IND 120NH 43A 0.35 MOHM0 - Immediate$2.17View Details
FIXED IND 150NH 43A 0.35 MOHMSPB0705-R15MFIXED IND 150NH 43A 0.35 MOHM131 - Immediate$4.04View Details

SPB1005 Series Inductors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FIXED IND 100NH 53A 0.35 MOHMSPB1005-R10MFIXED IND 100NH 53A 0.35 MOHM1152 - Immediate$4.04View Details
FIXED IND 120NH 53A 0.35 MOHMSPB1005-R12MFIXED IND 120NH 53A 0.35 MOHM444 - Immediate$4.04View Details
FIXED IND 150NH 53A 0.35 MOHMSPB1005-R15MFIXED IND 150NH 53A 0.35 MOHM287 - Immediate$4.04View Details
FIXED IND 220NH 53A 0.35 MOHMSPB1005-R22MFIXED IND 220NH 53A 0.35 MOHM866 - Immediate$4.04View Details

SPB1007 Series Inductors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FIXED IND 115NH 61A 0.35 MOHMSPB1007-R12MFIXED IND 115NH 61A 0.35 MOHM500 - Immediate$4.44View Details
FIXED IND 150NH 61A 0.35 MOHMSPB1007-R15MFIXED IND 150NH 61A 0.35 MOHM115 - Immediate$4.44View Details
FIXED IND 175NH 61A 0.35 MOHMSPB1007-R17MFIXED IND 175NH 61A 0.35 MOHM235 - Immediate$4.44View Details
FIXED IND 215NH 61A 0.35 MOHMSPB1007-R22MFIXED IND 215NH 61A 0.35 MOHM497 - Immediate$4.44View Details
FIXED IND 230NH 61A 0.35 MOHMSPB1007-R23MFIXED IND 230NH 61A 0.35 MOHM436 - Immediate$4.44View Details
FIXED IND 270NH 61A 0.35 MOHMSPB1007-R27MFIXED IND 270NH 61A 0.35 MOHM395 - Immediate$4.44View Details
FIXED IND 300NH 61A 0.35 MOHMSPB1007-R30MFIXED IND 300NH 61A 0.35 MOHM574 - Immediate$4.44View Details

SPB1012 Series Inductors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FIXED IND 100NH 60A 0.14 MOHMSPB1012-R10YFIXED IND 100NH 60A 0.14 MOHM339 - Immediate$7.04View Details
FIXED IND 120NH 60A 0.14 MOHMSPB1012-R12YFIXED IND 120NH 60A 0.14 MOHM300 - Immediate$7.04View Details
FIXED IND 130NH 60A 0.14 MOHMSPB1012-R13YFIXED IND 130NH 60A 0.14 MOHM345 - Immediate$7.04View Details
FIXED IND 150NH 60A 0.14 MOHMSPB1012-R15YFIXED IND 150NH 60A 0.14 MOHM573 - Immediate$7.04View Details
FIXED IND 330NH 60A 0.14 MOHMSPB1012-R33YFIXED IND 330NH 60A 0.14 MOHM289 - Immediate$7.04View Details

SPB1308 Series

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FIXED IND 210NH 50A 0.35 MOHMSPB1308-R21MFIXED IND 210NH 50A 0.35 MOHM350 - Immediate$6.05View Details
FIXED IND 260NH 50A 0.35 MOHMSPB1308-R26MFIXED IND 260NH 50A 0.35 MOHM289 - Immediate$6.05View Details
FIXED IND 320NH 50A 0.35 MOHMSPB1308-R32MFIXED IND 320NH 50A 0.35 MOHM645 - Immediate$6.05View Details
FIXED IND 440NH 50A 0.35 MOHMSPB1308-R44MFIXED IND 440NH 50A 0.35 MOHM340 - Immediate$6.05View Details
Published: 2022-11-01
