LMX9838 Bluetooth Module Slide 15

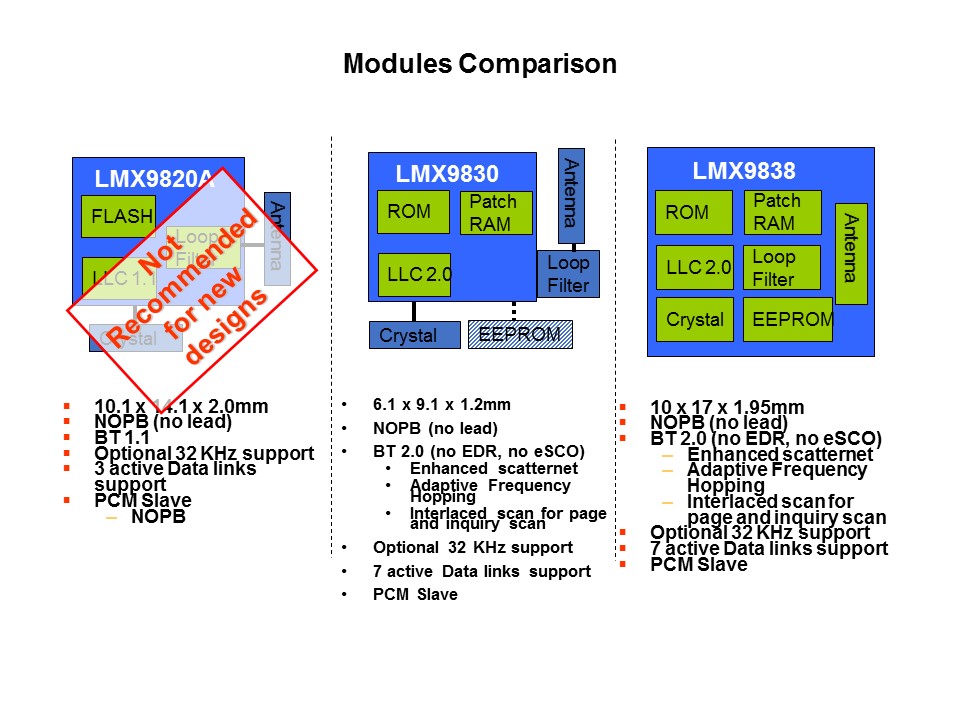

The above chart is provided for designers familiar with the LMX9820A. This chart compares the LMX9820A to the LMX9830 and LMX9838. The LMX9820A is still being supported and sold for customers already in production. However, the Bluetooth SIG has deprecated the Bluetooth spec revision 1.1 and any design based on v1.1 will not be eligible for qualification. Therefore, since the LMX9820A is a v1.1 device, it is not recommended for new designs.
PTM Published on: 2011-11-02
