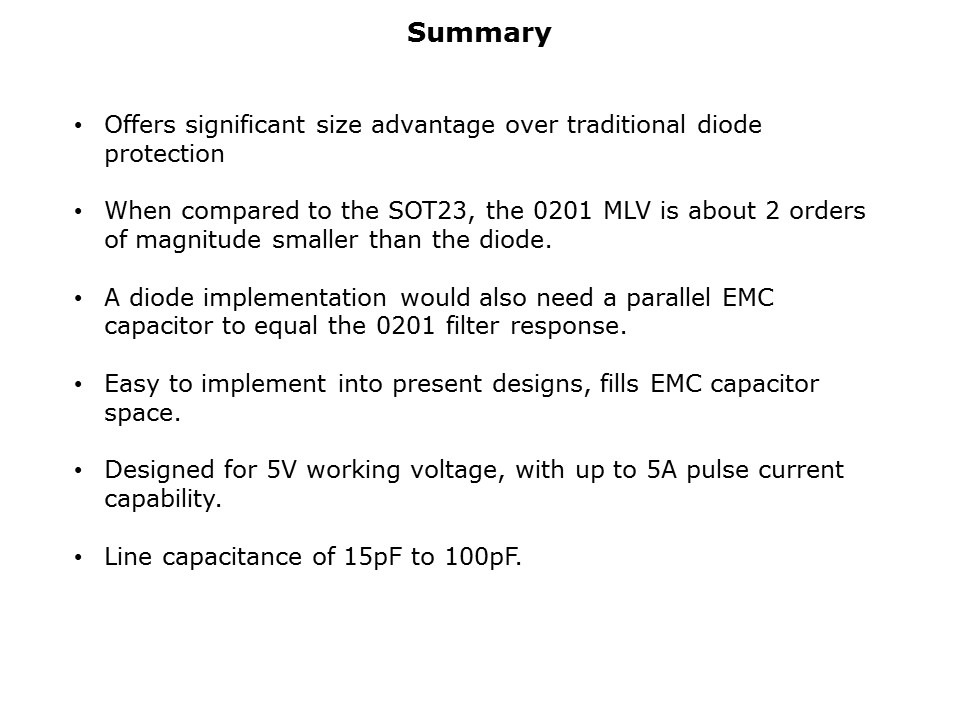

0201MLV-slide12

In summary, the AVX 0201 multi-layer varistor offers significant filter response and size advantage over typical diode and EMC capacitor TVS protection implementations. In addition, the varistors are easy to implement into current designs by using the board position used for the EMC capacitor. Designed for 5V operation, the devices can handle up to a 5A pulse current and have several line capacitance options.

PTM Published on: 2009-10-13
